Germany Siemens DP Connector Electrical 6ES7972-0BB12-0XA0 RS485 Plug
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | UL |
| Model Number | 6ES7972-0BB12-0XA0 |
| Minimum Order Quantity | 1 unit |
| Price | ＄35 negotiable |
| Packaging Details | 6.80 x 8.00 x 3.20CM |
| Supply Ability | 100 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Package Size | 6.80 X 8.00 X 3.20 |
|---|---|---|---|
| Packaging Size Unit | CM | Net Weight (Kg) | 0.060 Kg |
| Number Of PROFIBUS Wires | 2 | Transmission Rate/PROFIBUS DP | 9.6 Kbit/s ... 12 Mbit/s |
| Protection Level IP | IP20 | Cable Outlet Method | 90 Degree Cable Outlet |
| High Light | Germany Siemens DP Connector,Siemens DP Connector Electrical,6ES7972-0BB12-0XA0 |
||
Product Description

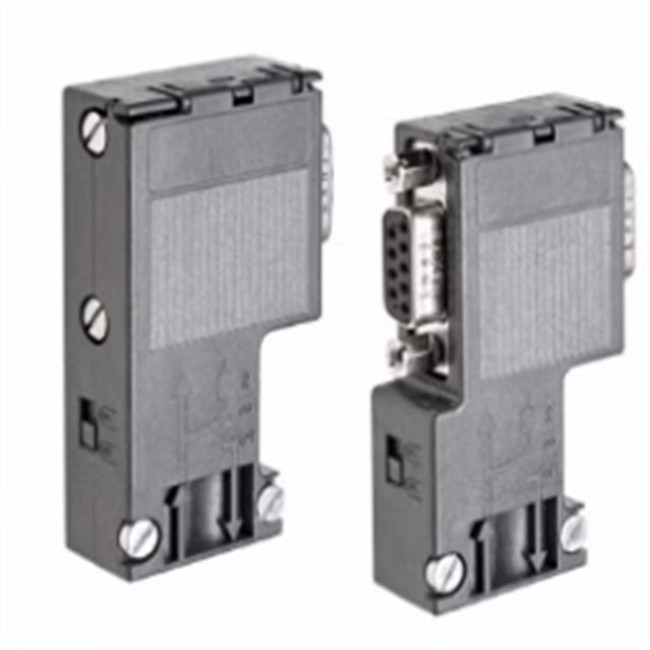

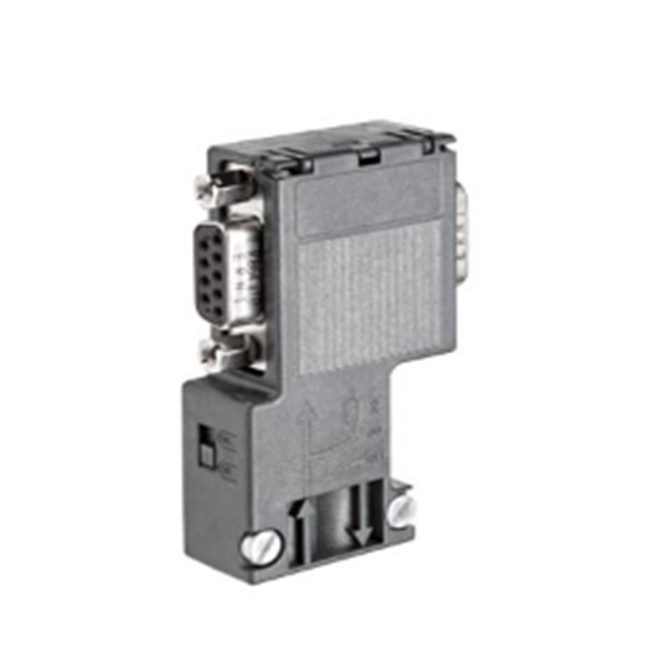

6ES7972-0BB12-0XA0 Siemens DP Connector PROFIBUS Connector RS485 Plug
SIMATIC DP, connector for PROFIBUS up to 12 MBit/s 90 ° cable outlet, 15.8x 64x 35.6mm (width x height x depth), terminal resistor with isolation function, with PG programming device socket
| Applicability | To connect the PROFIBUS device to the PROFIBUS bus cable |
| Electrical connection specifications apply to PROFIBUS wires | bolt |
| Network components and terminal devices | 9-pin Sub-D plug |
| Terminal resistor specifications | Integrated resistor combination and can be connected through sliding switch |
| Housing material | plastics |
| Structural form of locking device | Fixing screw |
| Ambient temperature | -25 ... +60 °C |
| STORAGE TEMPERATURE | -40 ... +70 °C |
| Ambient temperature | -40 ... +70 °C |
