Bus Plug Sie 6ES7972-0BB52-0XA0 DP Connector With Programming Port
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | UL |
| Model Number | 6ES7972-0BB52-0XA0 |
| Minimum Order Quantity | 1 unit |
| Price | ＄35 negotiable |
| Packaging Details | 6.80 x 7.90 x 3.20CM |
| Supply Ability | 300 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Net Weight (Kg) | 0.047 Kg |
|---|---|---|---|
| Package Size | 6.80 X 7.90 X 3.20 | Packaging Size Unit | CM |
| Product Type Name | PROFIBUS Connector | Ambient Temperature | -25 ... +60 °C |
| STORAGE TEMPERATURE | -40 ... +70 °C | Transportation Environment Temperature | -40 ... +70 °C |
| High Light | Sie 6ES7972-0BB52-0XA0,6ES7972-0BB52-0XA0 |
||
Product Description

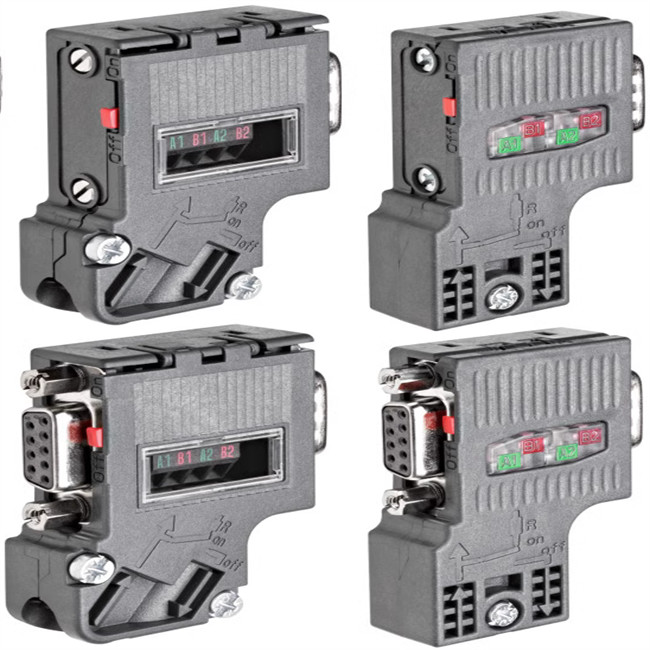

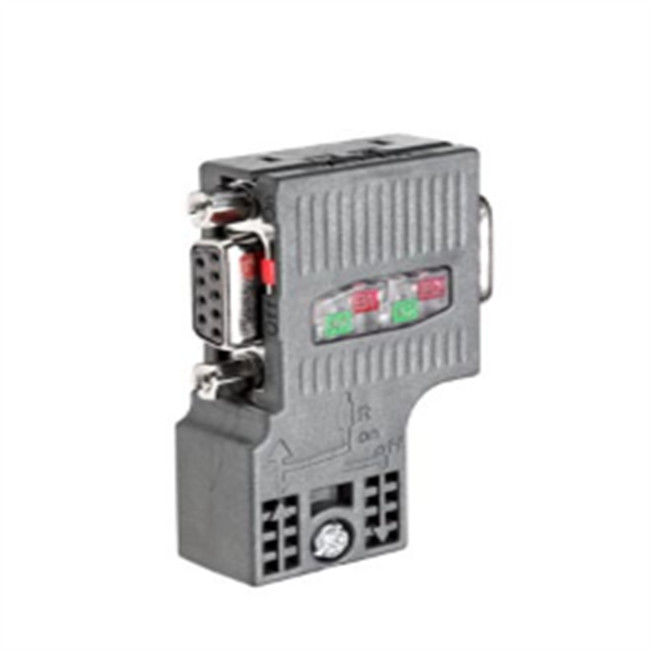

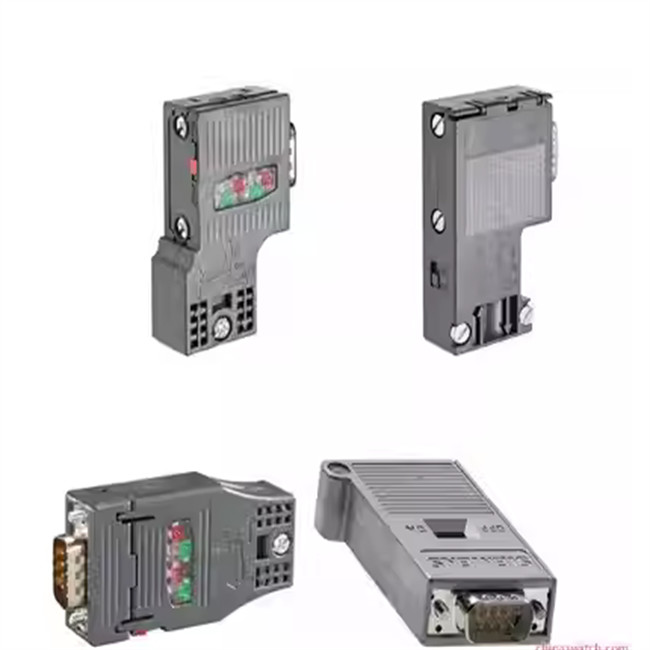

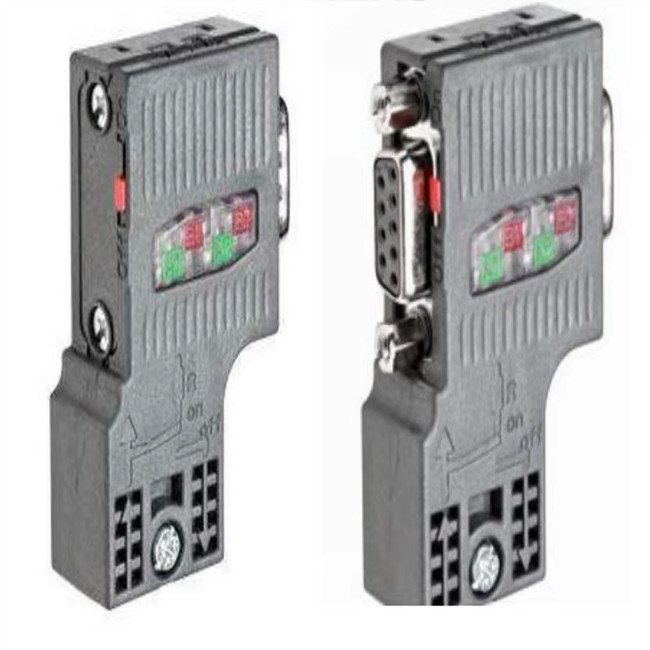

Bus Plug 6ES7972-0BB52-0XA0 Siemens DP Connector With Programming Port
SIMATIC DP, connector for PROFIBUS up to 12 MBit/s 90 ° cable outlet, insulated crimp connection Fast Connect, with PG programming device socket 15.8x 59x 35.6mm (width x height x depth)
| Number of electrical connections for PROFIBUS wires | 2 |
| Network components and terminal devices | 1 |
| PROFIBUS wire electrical connection specifications | Integrated crimping technology suitable for 2-core PB FC installation wires |
| Electrical connection specifications for network components and terminal equipment | 9-pin Sub-D plug |
| Terminal resistor specifications | Integrated resistor combination and can be connected through sliding switch |
| Housing material | plastics |
| Structural form of locking device | Fixing screw |
| Cable outlet method | 90 degree cable outlet |
