RS485 Plug Siemens DP Connector Devices 6GK1500-0FC10 Industrial
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | UL |
| Model Number | 6GK1500-0FC10 |
| Minimum Order Quantity | 1 unit |
| Price | ＄45 negotiable |
| Packaging Details | 16*62*34.5mm |
| Supply Ability | 100 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Width | 16 Mm |
|---|---|---|---|
| Height | 62 Mm | Depth | 34.5 Mm |
| Net Weight | 40 G | Ambient Temperature | -40 ... +70 °C |
| STORAGE TEMPERATURE | -25 ... +80 °C | Transportation Environment Temperature | -25 ... +80 °C |
| High Light | RS485 Siemens DP Connector,Siemens DP Connector Devices,6GK1500-0FC10 |
||
Product Description

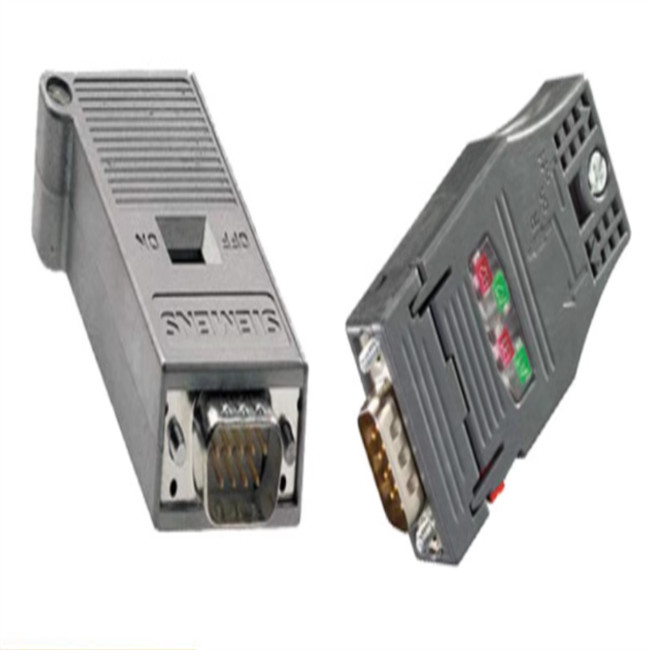

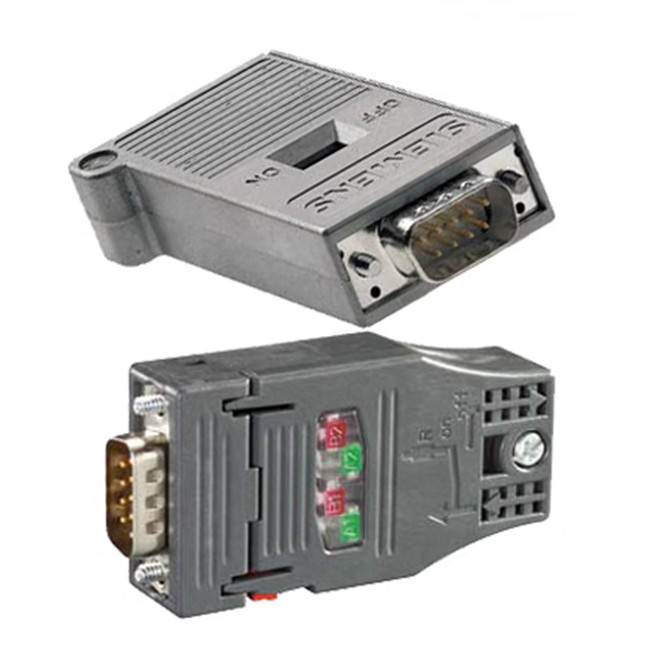

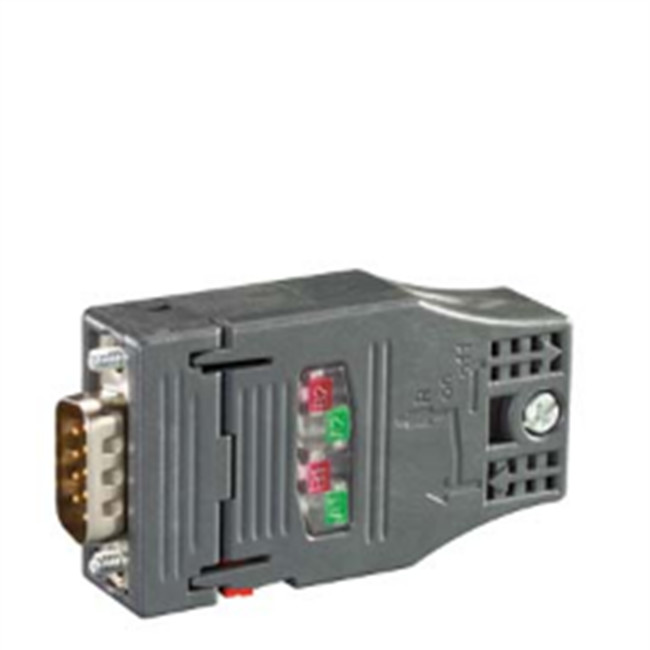

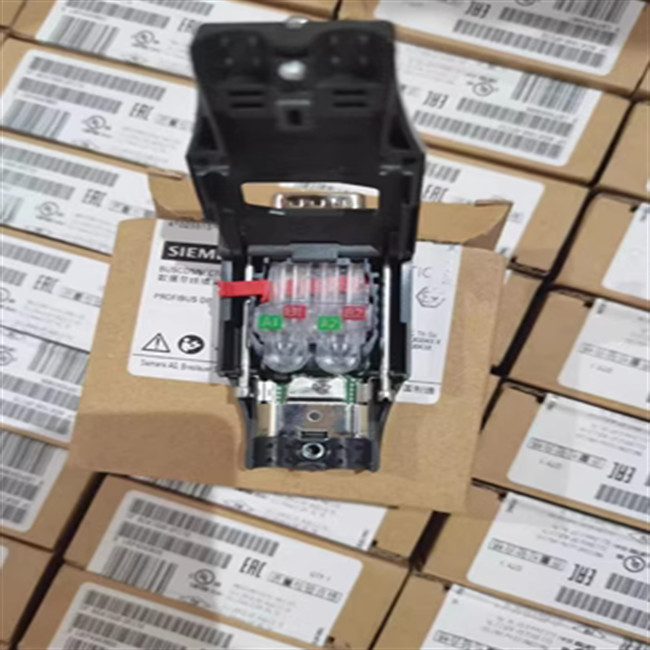

6GK1500-0FC10 PROFIBUS FC Bus Connection Plug RS485 DP Connector Siemens DP Connector
PROFIBUS FC RS 485 plug 180 PROFIBUS connector, axial cable industrial computer with FastConnect connection plug and OLM, SIMATIC OP, outgoing line, transmission rate: 12 Mbit/s, terminal resistor with isolation function, plastic casing
| Product Type Name | PROFIBUS FC bus connection plug RS 485 |
| Applicability | Used to connect PROFIBUS devices and PROFIBUS bus cables |
| Transmission rate/PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
| PROFIBUS wire | Integrated pressure contact point suitable for 2-core PB FC installation wires |
| Network components and terminal devices | SUB-D plug (9-pin) |
| Terminal resistor specifications | Integrated resistor combination and can be connected through a sliding switch. Separation function: Separate the disconnected bus when connecting the resistor |
| Housing material | plastics |
| Structural form of locking device | Fixing screw |
