S2 72A 3RW Soft Starters Screw Terminals 3RW3038-1BB04 37 KW
| Place of Origin | Czech Republic |
|---|---|
| Brand Name | Siemens |
| Certification | CE |
| Model Number | 3RW3038-1BB04 |
| Minimum Order Quantity | 1 unit |
| Price | ＄450 negotiable |
| Packaging Details | 165.00 x 198.00 x 71.00MM |
| Supply Ability | 100 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Net Weight (Kg) | 1.162 Kg |
|---|---|---|---|
| Package Size | 165.00 X 198.00 X 71.00 | Packaging Size Unit | MM |
| Product Brand Name | SIRIUS | Product Name | Soft Starter |
| Operating Frequency Measurement Value | 50 ... 60HZ | Working Current | 72A |
| High Light | S2 3RW Soft Starters,72A 3RW Soft Starters,3RW3038-1BB04 |
||
Product Description

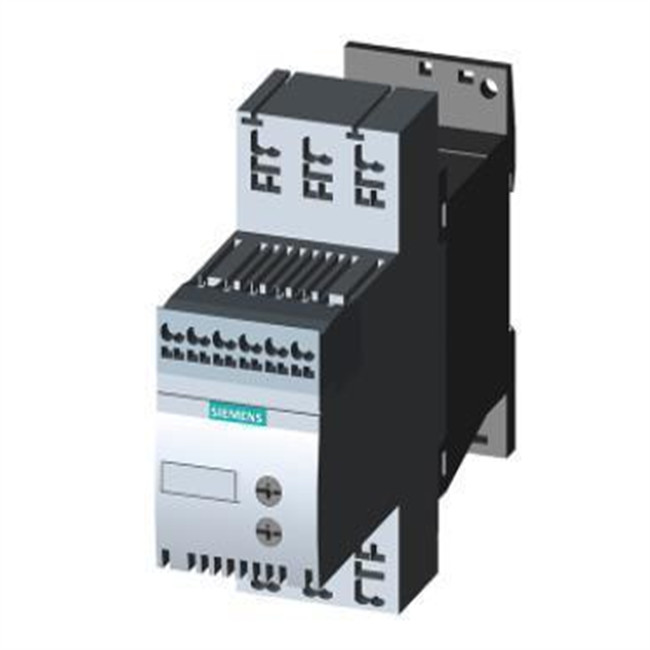

3RW Soft Starters 3RW3038-1BB04 Siemens Soft Starter SIRIUS SOFT STARTER SIZE S2
SIRIUS soft starter S2 72 A, 37 kW/400 V, 40 ° C 200-480 V AC, 24 V AC/DC screw terminals
| Measured value of working current at 40 ° C | 72A |
| Measured value of working current at 50 ° C | 62A |
| Measured value of working current at 60 ° C | 60A |
| The output mechanical power is 230V for AC motors | 22KW |
| The output mechanical power is 400V for AC motors | 37KW |
| Relative negative tolerance operating frequency | -10% |
| Relative positive tolerance operating frequency | 10% |
| Measured value of working voltage during standard wiring | 200 ... 480V |
| Minimum load [%] | 10% |
