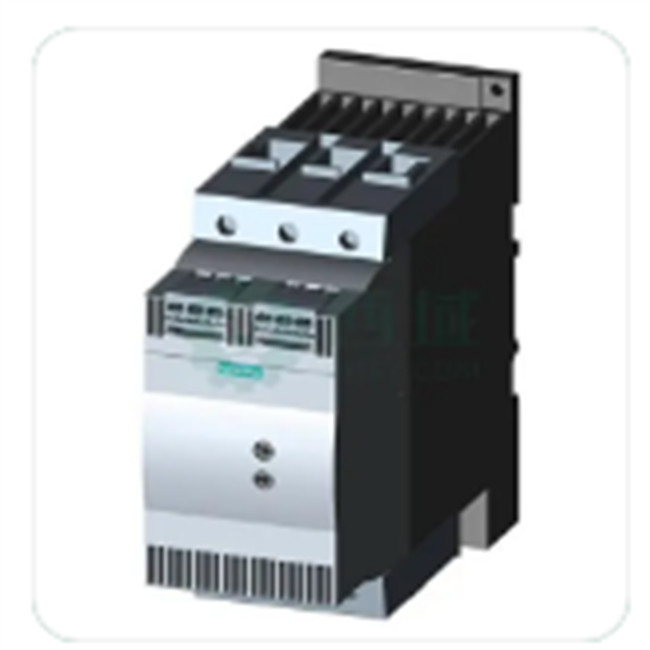

3RW SIRIUS Softstarter S3 80 A 3RW3046-1BB14 IP20 Protection Level
| Place of Origin | Czech Republic |
|---|---|
| Brand Name | Siemens |
| Certification | CE |
| Model Number | 3RW3046-1BB14 |
| Minimum Order Quantity | 1 unit |
| Price | ＄516 negotiable |
| Packaging Details | 212.00 x 217.00 x 88.00MM |
| Supply Ability | 100 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Package Size | 212.00 X 217.00 X 88.00 |
|---|---|---|---|
| Packaging Size Unit | MM | Net Weight (Kg) | 1.700 Kg |
| Protection Level IP | IP20 | Ambient Temperature | -25 ... +60°C |
| STORAGE TEMPERATURE | -40 ... +80°C | Electrical Connection Specifications | Bolted Connection |
| High Light | 3RW SIRIUS Softstarter,SIRIUS Softstarter,3RW3046-1BB14 |
||
Product Description
Siemens Soft Start 3RW3046-1BB14 SIRIUS SOFT STARTER SIZE S3 3RW Soft Starters
SIRIUS soft starter S3 80 A, 45 kW/400 V, 40 ° C 200-480 V AC, 110-230 V AC/DC screw terminals
| Product brand name | SIRIUS |
| Insulation voltage measurement value | 600V |
| product name | soft starter |
| Measured value of working current at 40 ° C | 80A |
| Measured value of working current at 50 ° C | 73A |
| Measured value of working current at 60 ° C | 60A |
| The output mechanical power is 230 V for AC motors | 22KW |
| The output mechanical power is 400 V for AC motors | 45KW |
| Operating frequency measurement value | 50 ... 60HZ |
