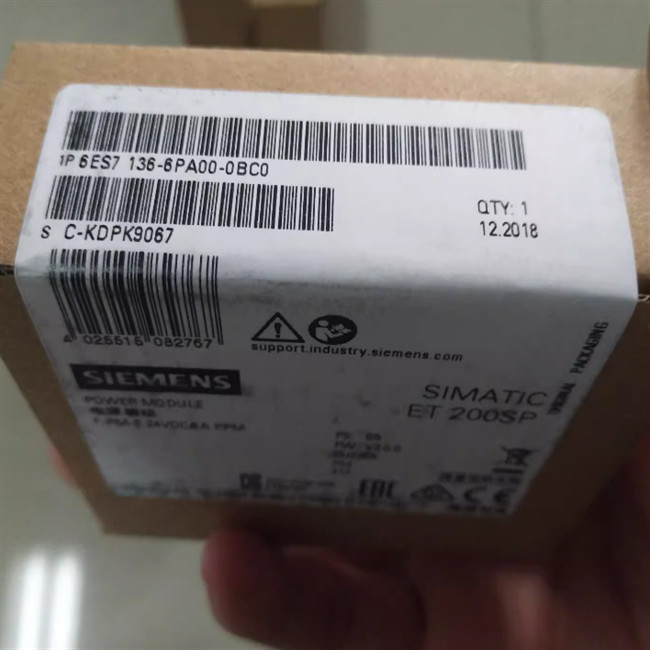

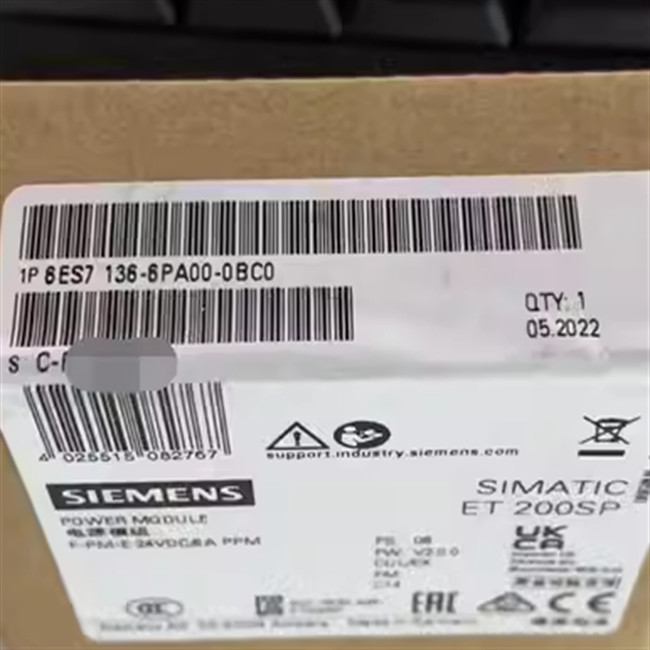

24V DC PLC Power Module / 6ES7136-6PA00-0BC0 Fault Safety Module
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | CE |
| Model Number | 6ES7136-6PA00-0BC0 |
| Minimum Order Quantity | 1 unit |
| Price | ＄260 negotiable |
| Packaging Details | 6.70 x 7.50 x 2.90CM |
| Supply Ability | 100 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Net Weight (Kg) | 0.081 Kg |
|---|---|---|---|
| Package Size | 6.70 X 7.50 X 2.90 | Packaging Size Unit | CM |
| Rated Value (DC) | 24 V | Allowable Range, Lower Limit (DC) | 20.4 V |
| Allowable Range, Upper Limit (DC) | 28.8 V | Current Consumption (rated Value) | 75 MA; No Load |
| High Light | 24V PLC Power Module,DC PLC Power Module,6ES7136-6PA00-0BC0 |
||
Product Description

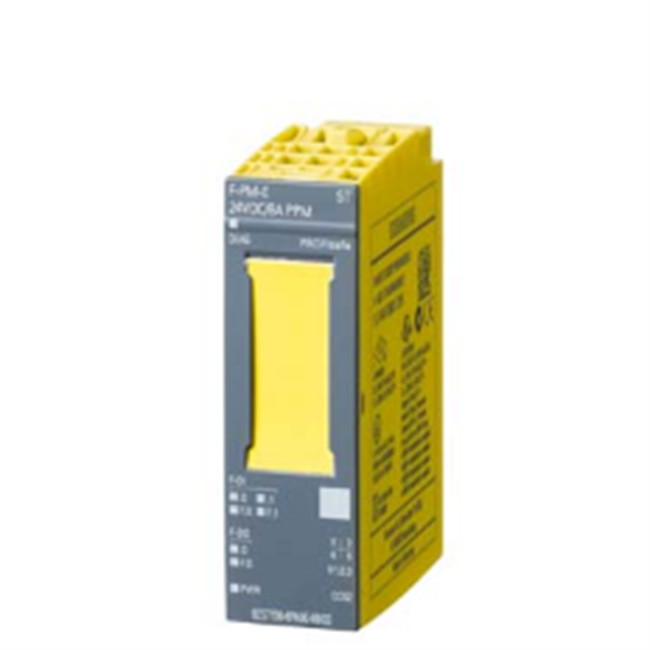

6ES7136-6PA00-0BC0 PLC Module Siemens Fault Safety Module Power Module
SIMATIC DP, power module F-PM-E PPM PROFIsafe, for ET 200SP; 24V DC safety shutdown digital output and F digital output up to PL D/SIL2 and PL E/SIL3 2 for safety digital input 1 power module for safety digital output
| Current consumption, maximum | 21 mA; From backplane bus |
| STEP 7 TIA port, configurable/integrated, self version | V12 |
| STEP 7 configurable/integrated, self version | V5.5 SP3 / - |
| PROFINET version GSD version/above GSD revision | V2.31 |
| Number of output terminals | 2 |
| Short circuit protection | Electronic (response threshold 0.7 A to 2.1 A) |
| The maximum output current can reach 60 ℃, with a maximum value | 0.3 A |
| 24 V sensor power supply | Minimum value L+(-1.5 V) |
| Output current, maximum | 600 mA; Total current of all encoders |
| Power output from backplane bus | 70 mW |
