DC PLC Module CPU 1214C S7-1200 6ES7214-1AG40-0XB0 Digital Inputs
| Place of Origin | China |
|---|---|
| Brand Name | Siemens |
| Certification | CE |
| Model Number | 6ES7214-1AG40-0XB0 |
| Minimum Order Quantity | 1 unit |
| Price | ＄198 negotiable |
| Packaging Details | 10.80 x 11.60 x 8.30CM |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Weight | 0.358 Kg |
|---|---|---|---|
| Package Size | 10.80 X 11.60 X 8.30 | Packaging Size Unit | CM |
| Product Type Mark | CPU1214C DC/DC/DC | Firmware Version | V4.5 |
| Engineered Systems | STEP 7 V17 And Above | Rated Value (DC) | DC 24 V |
| High Light | DC PLC Module,PLC Module CPU,6ES7214-1AG40-0XB0 |
||
Product Description

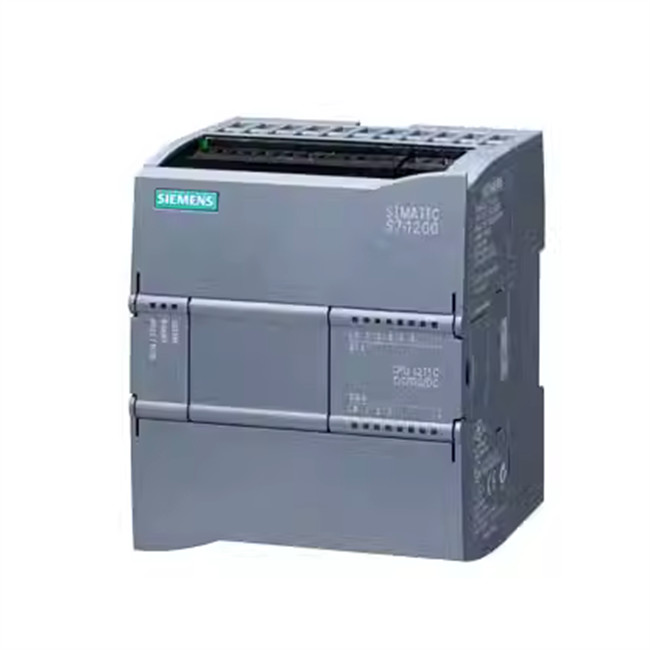

6ES7214-1AG40-0XB0 Plc Module SiemensS7-1200 CPU1214C DC/DC/DC
SIMATIC S7-1200, CPU 1214C, compact CPU, DC/DC/DC, onboard I/O: 14 24V DC digital inputs; 10 24V DC digital outputs; 2 AI 0-10V DC, power supply: DC 20.4-28.8V DC, program/data memory 100 KB
| Current consumption (rated value) | 500 mA CPU only |
| Current consumption, maximum | 1500 mA; CPU with all expansion modules |
| For backplane bus (DC 5 V), maximum value | 1600 mA; Maximum 5 V DC for SM and CM |
| Number of components (total) | DBs, FCs, FBs, counters, and timers. The number of modules with settable addresses can range from 1 to 65535. Unlimited use for the entire working memory |
| Retained data range (including time, counters, tags), maximum value | 14 kbyte |
| Each priority level, maximum value | 16 kbyte; Priority level 1 (program cycle): 16 KB, priority levels 2 to 26:6 KB |
| Number of components per system, maximum | 3 communication modules, 1 signal board, 8 signal modules |
| Pulse output terminal of resistive load, maximum value | 100 kHz |
| Environmental temperature during operation | -20 °C-60 °C |
