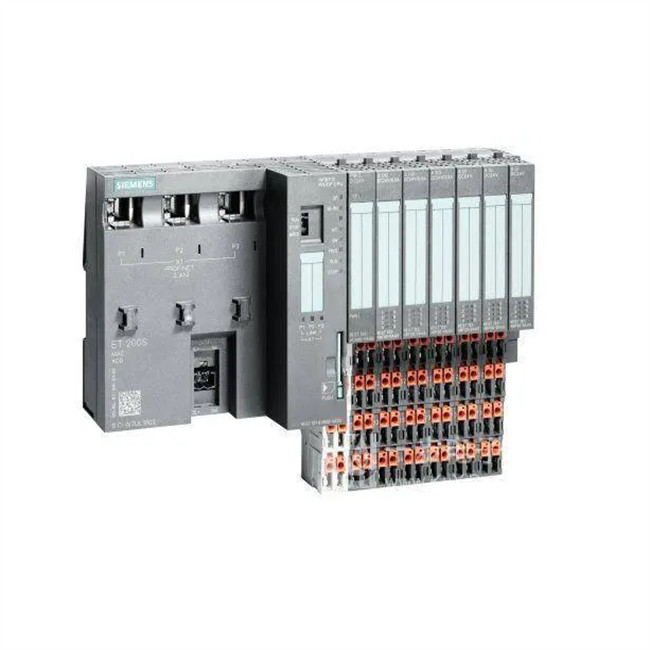

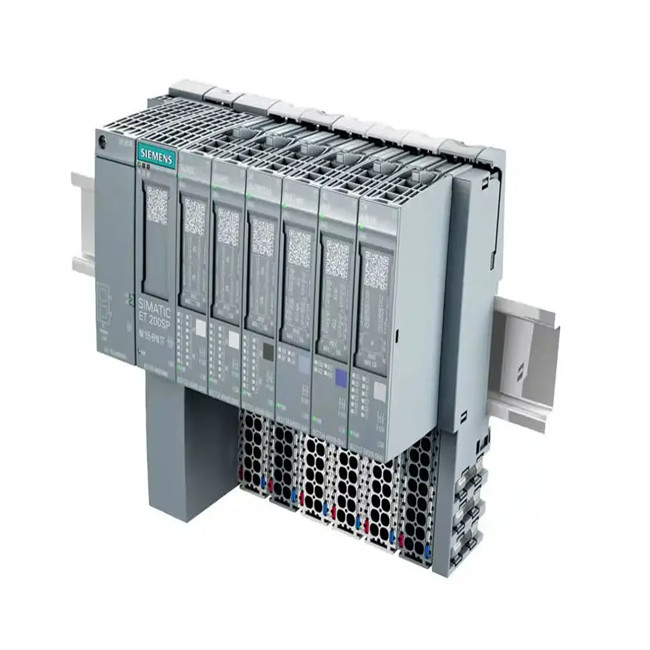

ET200SP PLC Analog Output Module 24V 6ES7135-6HD00-0BA1 4XU/I Standard
| Place of Origin | China |
|---|---|
| Brand Name | Siemens |
| Certification | CCC |
| Model Number | 6ES7135-6HD00-0BA1 |
| Minimum Order Quantity | 1 unit |
| Price | ＄220 negotiable |
| Packaging Details | 6.80 x 7.70 x 2.40CM |
| Supply Ability | 100 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Net Weight (Kg) | 0.040 Kg |
|---|---|---|---|
| Package Size | 6.80 X 7.70 X 2.40 | Packaging Size Unit | CM |
| Product Family | Analog Output Module | Product Type Mark | AQ 4xU/I ST |
| Hardware Functional Status | FS07 And Above Versions | Available Basic Units | BU Type A0, A1 |
| High Light | ET200SP PLC Analog Output Module,PLC Analog Output Module 24V,6ES7135-6HD00-0BA1 |
||
Product Description
6ES7135-6HD00-0BA1 PLC Module SIMATIC ET200SP Analog Output Module
SIMATIC ET 200SP, analog output module, analog output 4XU/I standard, suitable for A0 type base unit, A1, color code CC00, module diagnosis, 16 bits,+/-0.3%
| Rated value (DC) | 24 V |
| Allowable range, lower limit (DC) | 19.2 V |
| Allowable range, upper limit (DC) | 28.8 V |
| Current consumption, maximum | 150 mA |
| Power loss, typical value | 1.5 W |
| Address space for each module, maximum | 8 bytes+ 1 byte for QI information |
| Types of mechanical encoding keys | Type A |
| Number of analog outputs | 4 |
| Voltage output, short-circuit current, maximum value | 45 mA |
| Cycle time (all channels) minimum value | 5 ms |
