SIMATIC Siemens DP Connector Communication 6ES7972-0BB61-0XA0
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | UL |
| Model Number | 6ES7972-0BB61-0XA0 |
| Minimum Order Quantity | 1 unit |
| Price | ＄386 negotiable |
| Packaging Details | 6.80 x 7.80 x 3.20CM |
| Supply Ability | 100 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Package Size | 6.80 X 7.80 X 3.20 |
|---|---|---|---|
| Packaging Size Unit | CM | Net Weight (Kg) | 0.050 Kg |
| Program Port | Self Contained | Cable Outlet Method | 35 ° Cable Outlet |
| Protection Level IP | IP20 | Housing Material | Plastics |
| High Light | SIMATIC Siemens DP Connector,Siemens DP Connector Communication,6ES7972-0BB61-0XA0 |
||
Product Description

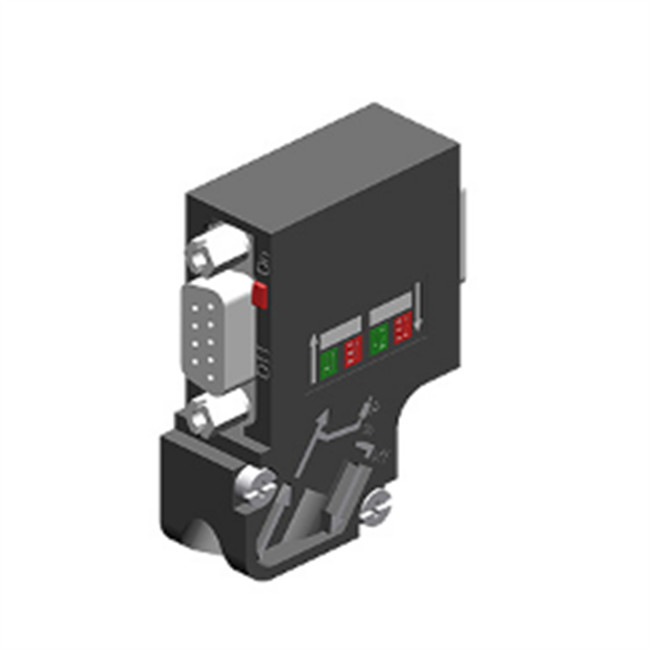

6ES7972-0BB61-0XA0 SIMATIC DP Communication Connector Siemens DP Connector
SIMATIC DP, connector for PROFIBUS up to 12 MBit/s 35 degree cable outlet, insulated crimp connection Fast Connect, with PG programming device socket 15.8x 54x 39.5mm (width x height x depth)
| Product Type Name | PROFIBUS connector |
| Applicability | To connect the PROFIBUS device to the PROFIBUS bus cable |
| Transmission rate/PROFIBUS DP | 9.6 kbit/s ... 12 Mbit/s |
| Number of wires | 2 |
| Terminal resistor specifications | Integrated resistor combination and can be connected through sliding switch |
| Structural form of locking device | Fixing screw |
| Ambient temperature | -25 ... +60 °C |
| STORAGE TEMPERATURE | -40 ... +70 °C |
