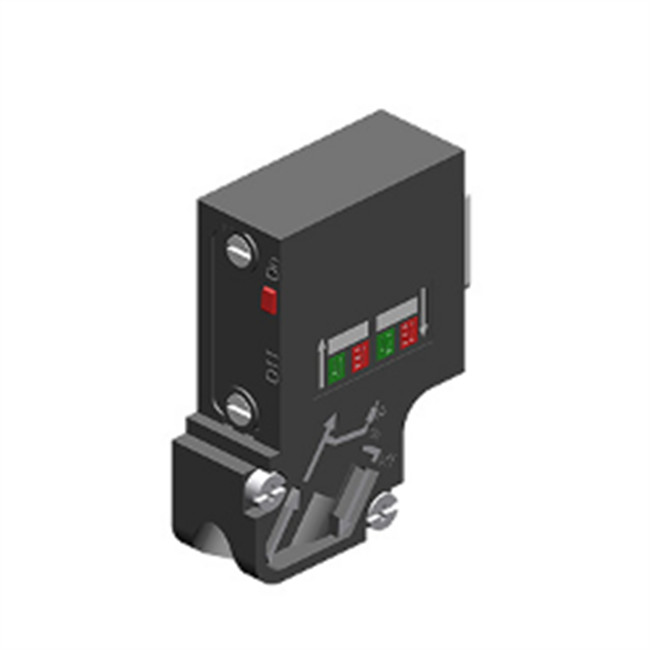

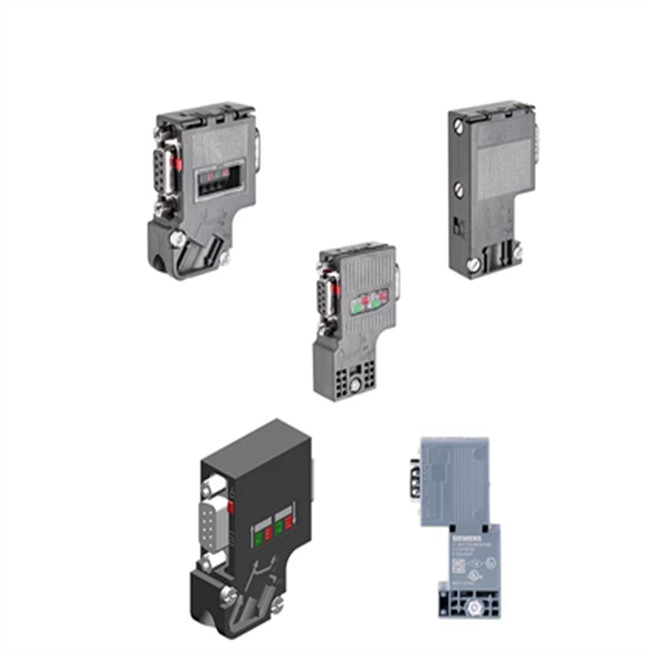

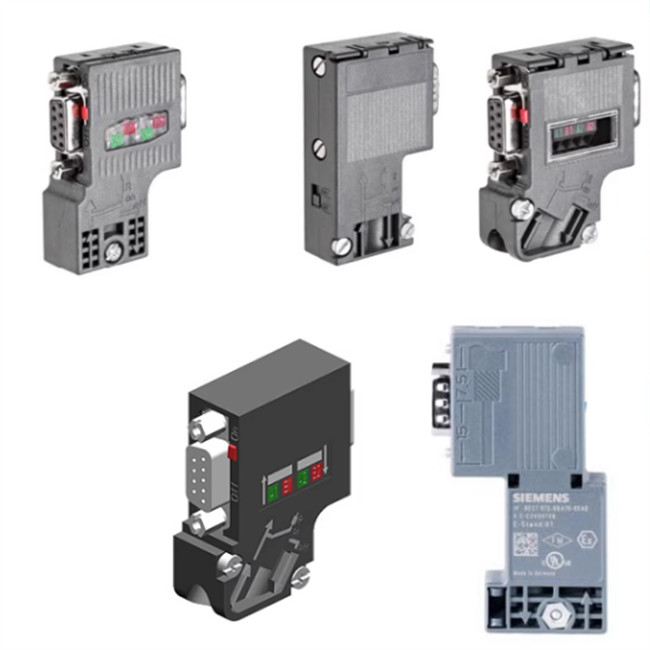

Insulated Siemens DP Connector PROFIBUS 6ES7972-0BA60-0XA0 RS485 Plug
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | UL |
| Model Number | 6ES7972-0BA60-0XA0 |
| Minimum Order Quantity | 1 unit |
| Price | ＄60 negotiable |
| Packaging Details | 6.80 x 7.80 x 3.20CM |
| Supply Ability | 100 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Net Weight | 29 G |
|---|---|---|---|
| Package Size | 6.80 X 7.80 X 3.20 | Packaging Size Unit | CM |
| Program Port | Not Have | Cable Outlet Method | 35 ° Cable Outlet |
| Protection Level IP | IP20 | Housing Material | Plastics |
| High Light | Insulated Siemens DP Connector,Siemens DP Connector PROFIBUS,6ES7972-0BA60-0XA0 |
||
Product Description
6ES7972-0BA60-0XA0 PROFIBUS Bus Connection Plug RS485 Plug Siemens DP Connector
SIMATIC DP, connector for PROFIBUS up to 12 MBit/s 35 degree cable outlet, insulated crimp connection Fast Connect, without PG programming device socket 15.8x 54x 39.5mm (width x height x depth)
| Applicability | To connect the PROFIBUS device to the PROFIBUS bus cable |
| Transmission rate/PROFIBUS DP | 9.6 kbit/s ... 12 Mbit/s |
| Number of PROFIBUS wires | 2 |
| During operation | -25 ... +60 °C |
| During storage and operation | -40 ... +70 °C |
| During transportation operation | -40 ... +70 °C |
| Terminal resistor specifications | Integrated resistor combination and can be connected through sliding switch |
| Structural form of locking device | Fixing screw |
