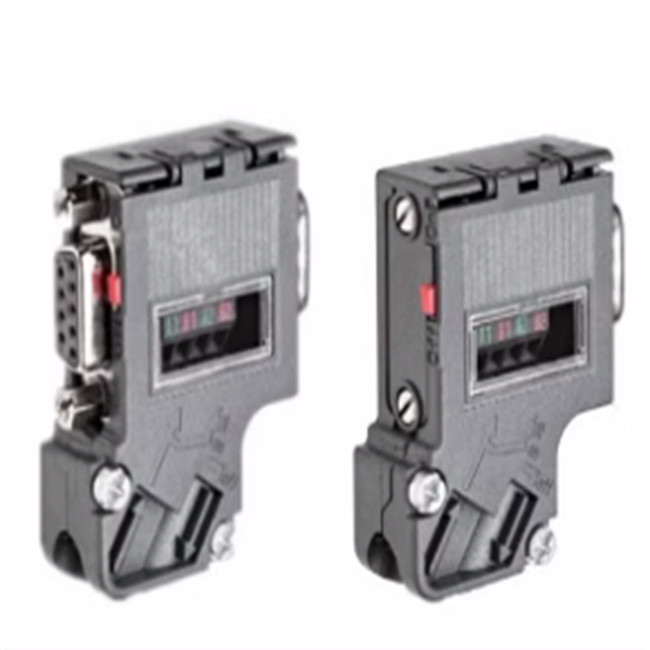

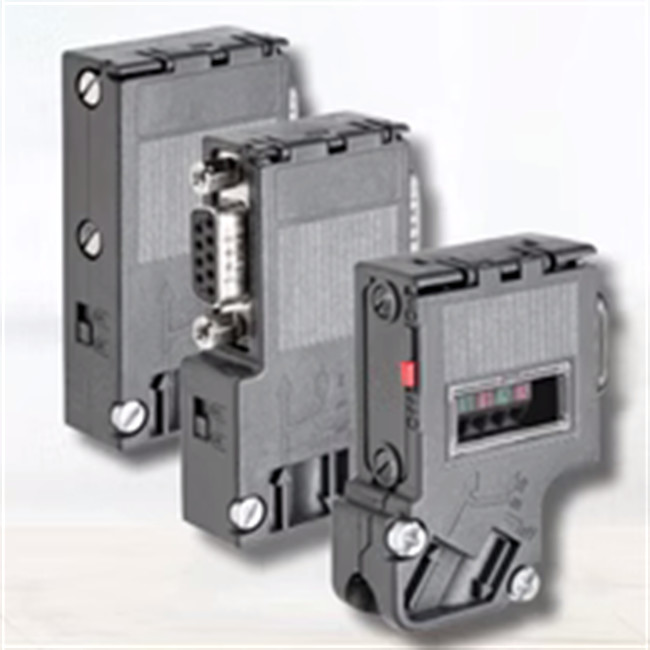

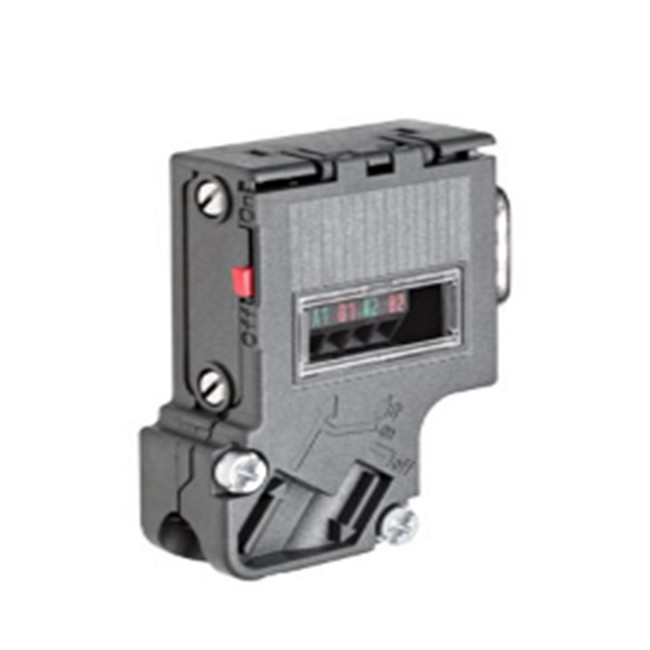

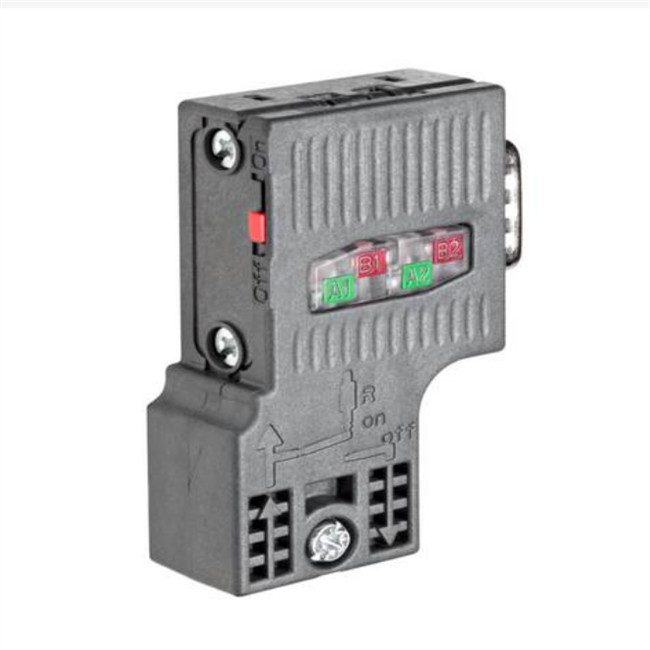

DP Connector Siemens 6ES7972-0BA42-0XA0 RS485 Data Bus Connector
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | UL |
| Model Number | 6ES7972-0BA42-0XA0 |
| Minimum Order Quantity | 1 unit |
| Price | ＄35 negotiable |
| Packaging Details | 6.90 x 7.50 x 2.90CM |
| Supply Ability | 100 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Net Weight (Kg) | 0.043 Kg |
|---|---|---|---|
| Package Size | 6.90 X 7.50 X 2.90 | Packaging Size Unit | CM |
| Product Family | RS485 Bus Connector | Cable Outlet Method | 35 Degree Cable Outlet |
| Protection Level IP | IP20 | Number Of Wires | 2 |
| High Light | Siemens 6ES7972-0BA42-0XA0,6ES7972-0BA42-0XA0 |
||
Product Description
6ES7972-0BA42-0XA0 Siemens DP Connector SIMATIC DP Connector Data Bus Connector
SIMATIC DP, connector for PROFIBUS up to 12 MBit/s with diagonal cable outlet, 15.8x 54x 39.5mm (width x height x depth), terminal resistor with isolation function, without PG programming device socket
| Applicability | To connect the PROFIBUS device to the PROFIBUS bus cable |
| Transmission rate/PROFIBUS DP | 9.6 kbit/s ... 12 Mbit/s |
| PROFIBUS wire electrical connection specifications | bolt |
| Network components and terminal devices | 9-pin Sub-D plug |
| Terminal resistor specifications | Integrated resistor combination and can be connected through sliding switch |
| Housing material | plastics |
| Structural form of locking device | Fixing screw |
