Smart PLC HMI Panel Screen 6AV2125-2GB23-0AX0 KTP700F Mobile
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | CE |
| Model Number | 6AV2125-2GB23-0AX0 |
| Minimum Order Quantity | 1 unit |
| Price | ＄2850 negotiable |
| Packaging Details | 21.20 x 26.20 x 9.90CM |
| Supply Ability | 90 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Package Size | 21.20 X 26.20 X 9.90 |
|---|---|---|---|
| Packaging Size Unit | CM | Net Weight (Kg) | 1.383 Kg |
| Product Type Mark | KTP700F Mobile | Display Screen Specifications | TFT Widescreen Display With LED Backlight |
| Screen Diagonal | 7 In | Number Of Colors | 16 777 216 |
| High Light | Smart PLC HMI Panel,PLC HMI Panel Screen,6AV2125-2GB23-0AX0 |
||
Product Description

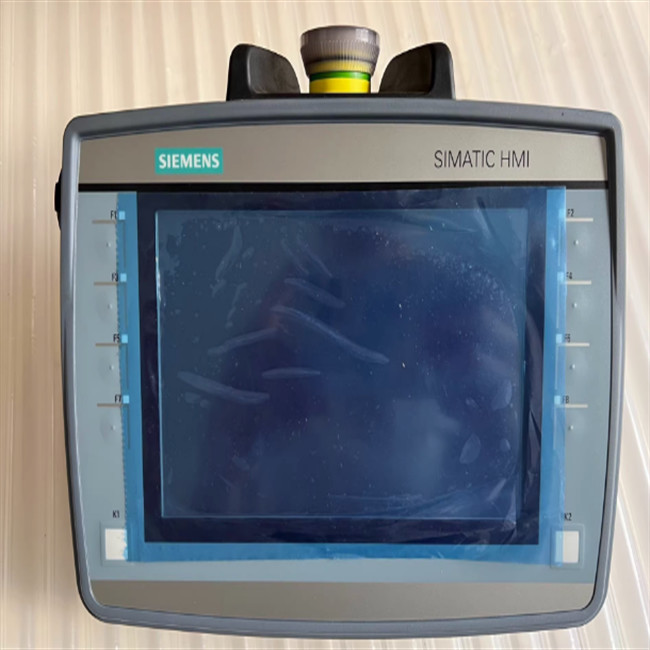

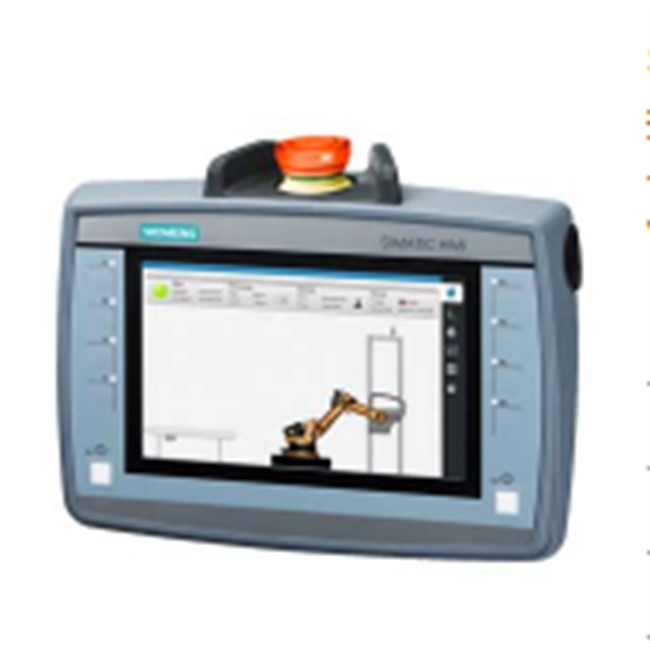

6AV2125-2GB23-0AX0 PLC HMI Panel Siemens KTP700F Mobile, 7.0 "TFT Display Screen
SIMATIC HMI KTP700F Mobile, 7.0 "TFT display screen, 800x 480 pixels, 16m color, button and touch operation, 8 function keys, 1 PROFINET/Industrial Ethernet interface, 1 multimedia card, 1x USB, key switch, confirm button, emergency stop button, minimum version of WinCC Smart 13 SP1 that can be configured for the project
| Voltage type of power supply | DC |
| Rated value (DC) | 24 V |
| Allowable range, lower limit (DC) | 19.2 V |
| Allowable range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 350 mA |
| Typical value of effective power received | 8.5 W |
| Processor type | ARM |
| Available storage for user data | 12 Mbyte |
