XC216-4C Industrial Ethernet Switch Managed 6GK5216-4BS00-2AC2 IEC
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | CE |
| Model Number | 6GK5216-4BS00-2AC2 |
| Minimum Order Quantity | 1 unit |
| Price | ＄1960 negotiable |
| Packaging Details | 20.50 x 20.50 x 21.00CM |
| Supply Ability | 100 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Net Weight (Kg) | 0.520 Kg |
|---|---|---|---|
| Package Size | 20.50 X 20.50 X 21.00 | Packaging Size Unit | CM |
| Product Family | SCALANCE XC-200 Network Management Type | Product Lifecycle (PLM) | PM300: Effective Product |
| Protection Level IP | IP20 | Housing Material | Polycarbonate (PC-GF10)/Aluminum Die Castings |
| High Light | XC216-4C Industrial Ethernet Switch,Industrial Ethernet Switch IEC,6GK5216-4BS00-2AC2 |
||
Product Description

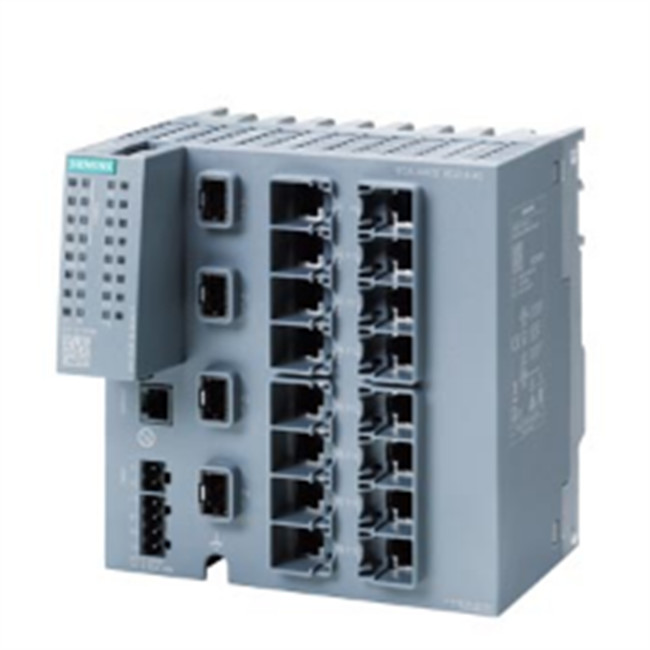

SCALANCE XC216-4C 6GK5216-4BS00-2AC2 Siemens Managed 2IE Switch XC-200
SCALANCE XC216-4C can manage layer 2 IE switches; IEC 62443-4 certification; 12x 10/100 Mbit/s RJ45 port; 4x 1000 Mbit/s combined ports (or 1000 Mbit/s SFP or 10/100/1000 Mbit/s RJ45 ports available); 1x console port; Diagnostic LED; Redundant power supply; Temperature range -40 ° C to+70 ° C; Installation: concave top guide rail/S7 type rail/wall; Redundant function; Office characteristics (RSTP, VLAN,...); PROFINET IO device; Ethernet/IP consistency; C-type plug slot;
| Product Type Name | SCALANCE XC216-4C |
| Transmission rate | 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s |
| Number of electrical interfaces | 16 |
| Number of optical interfaces | 4 |
| Number of Combo ports/with RJ45 interface for optical pluggable transceivers | 4; 1000 MBit/s SFPs |
| Number of SFP electrical connections | 4; 1000 Mbit/s SFP, or 100Mbit/s, through SCALANCE SFP991-1(LD) A |
| Electrical connection specifications for operating the control console | RJ11 |
| Electrical connection specifications for signal contacts | 2-pole terminal block |
| Electrical connection specifications are applicable to the power supply | 3-pin terminal board, fixed and built-in |
| Mobile storage media specifications | C-PLUG |
