PLC HMI KTP700 Mobile Panel 6AV2125-2GB03-0AX0 7.0 "TFT Display Screen
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | CE |
| Model Number | 6AV2125-2GB03-0AX0 |
| Minimum Order Quantity | 1 unit |
| Price | ＄1320 negotiable |
| Packaging Details | 21.50 x 26.20 x 9.90CM |
| Supply Ability | 130 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Package Size | 21.50 X 26.20 X 9.90 |
|---|---|---|---|
| Packaging Size Unit | CM | Net Weight (Kg) | 1.259 Kg |
| Product Family | Second Generation Mobile Panel | Product Type Mark | KTP700 MobileProduct Type Mark |
| Voltage Type Of Power Supply | DC | Rated Value (DC) | 24 V |
| High Light | KTP700 Mobile Panel,KTP700 Mobile,HMI KTP700 |
||
Product Description

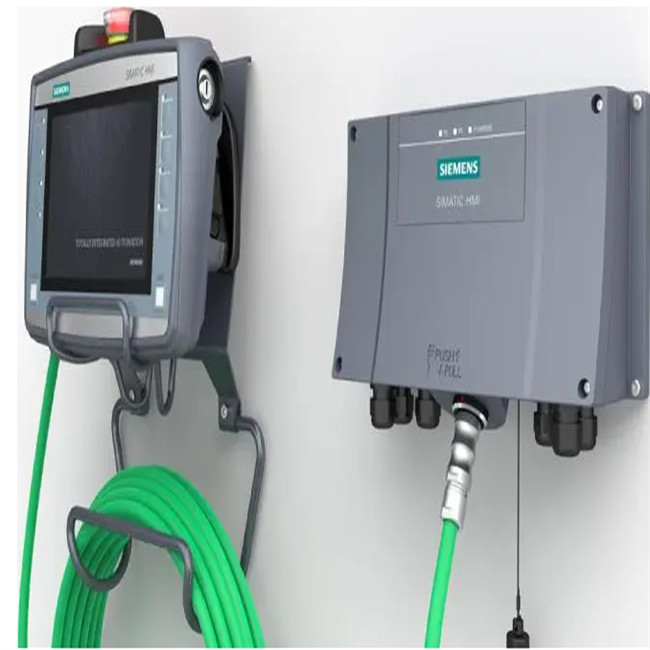

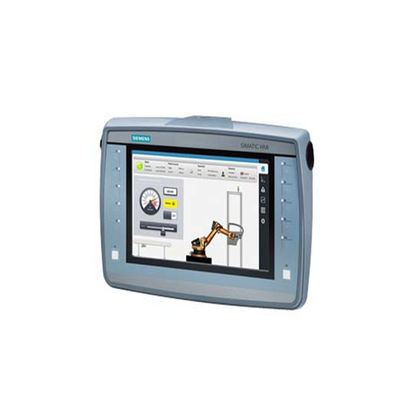

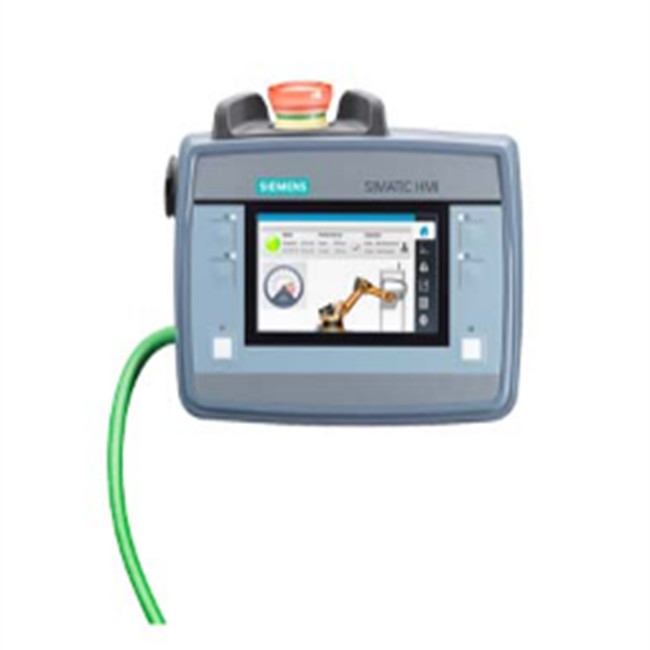

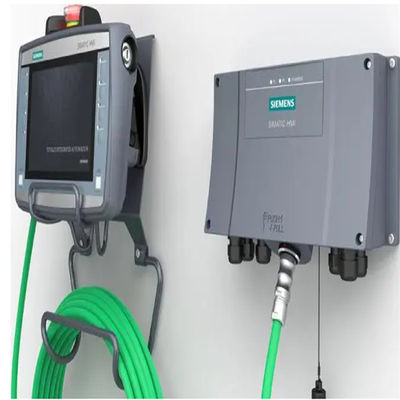

6AV2125-2GB03-0AX0 PLC HMI Panel Siemens KTP700 Mobile 7.0 "TFT Display
SIMATIC HMI KTP700 Mobile, 7.0 "TFT display screen, 800x 480 pixels, 16m color, key and touch operation, 8 function keys, 1 PROFINET/Industrial Ethernet interface, 1 multimedia card, 1x USB, minimum version of WinCC Smart 13 SP1 that can be configured for the project
| Display screen specifications | TFT widescreen display with LED backlight |
| Screen Diagonal | 7 in |
| Number of Colors | 16 777 216 |
| Horizontal image resolution | 800 pixel |
| Vertical image resolution | 480 pixel |
| MTBF background lighting (at a temperature of 25 ° C) | 50 000 h |
| Adjustable background lighting | 0-100 % |
| Allowable range, lower limit (DC) | 19.2 V |
| Allowable range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 350 mA |
