22 "PLC HMI Panel TP2200 6AV2124-0XC02-0AX1 Touch Display Screen
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | CE |
| Model Number | 6AV2124-0XC02-0AX1 |
| Minimum Order Quantity | 1 unit |
| Price | ＄5380 negotiable |
| Packaging Details | 52.00 x 66.00 x 22.00CM |
| Supply Ability | 110 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Net Weight (Kg) | 8.140 Kg |
|---|---|---|---|
| Package Size | 52.00 X 66.00 X 22.00 | Packaging Size Unit | CM |
| Product Type Mark | TP2200 Comfort | Screen Width | 475.2 Mm |
| Screen Height | 267.3 Mm | Number Of Colors | 16 777 216 |
| High Light | 22 "PLC HMI Panel,PLC HMI Panel TP2200,6AV2124-0XC02-0AX1 |
||
Product Description

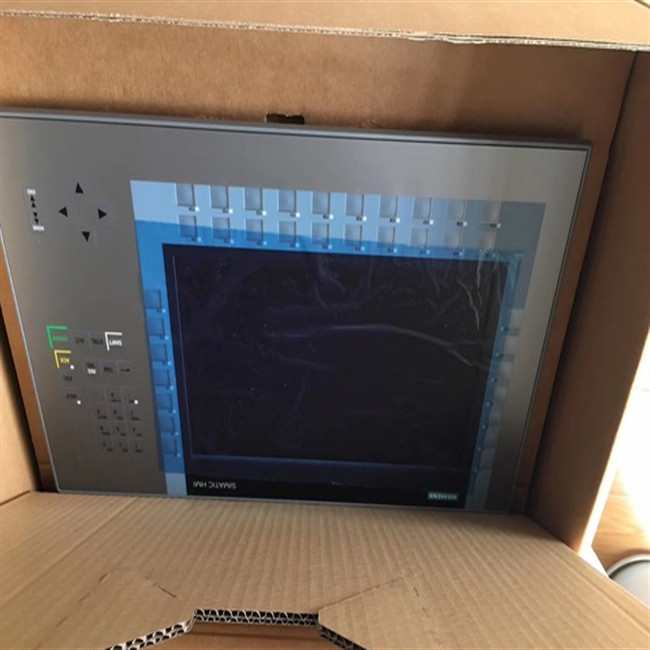

6AV2124-0XC02-0AX1 Siemens PLC HMI Panel TP2200 Touch Screen 22 "Display Screen
SIMATIC HMI TP2200 Comfort, Comfort Panel, touch operation, 22” widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS-DP interface, 24MByte project configuration memory, WEC 2013, project group available WinCC Comfort V14 SP1 with HSP
| Voltage type of power supply | DC |
| Rated value (DC) | 24 V |
| Allowable range, lower limit (DC) | 19.2 V |
| Allowable range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 1.7 A |
| storage | RAM flash memory |
| Available storage for user data | 24 Mbyte |
