PN / DP HMI Touch Screen 6 " 6AV6642-0BA01-1AX1 SIMATIC TP177B
| Place of Origin | Germany |
|---|---|
| Brand Name | Siemens |
| Certification | CE |
| Model Number | 6AV6642-0BA01-1AX1 |
| Minimum Order Quantity | 1 unit |
| Price | ＄2180 negotiable |
| Packaging Details | 212*198*44MM |
| Supply Ability | 60 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Delivery | China | Shell Front Width | 212 Mm |
|---|---|---|---|
| Shell Front Height | 156 Mm | Installation Section, Width | 198 Mm |
| Installation Section, Height | 142 Mm | Installation Depth | 44 Mm |
| Weight (excluding Packaging) | 0.8 Kg | Product Type Mark | TP177B 6" PN/DP Color |
| Highlight | PN HMI Touch Screen,DP HMI Touch Screen,6AV6642-0BA01-1AX1 |
||
Product Description

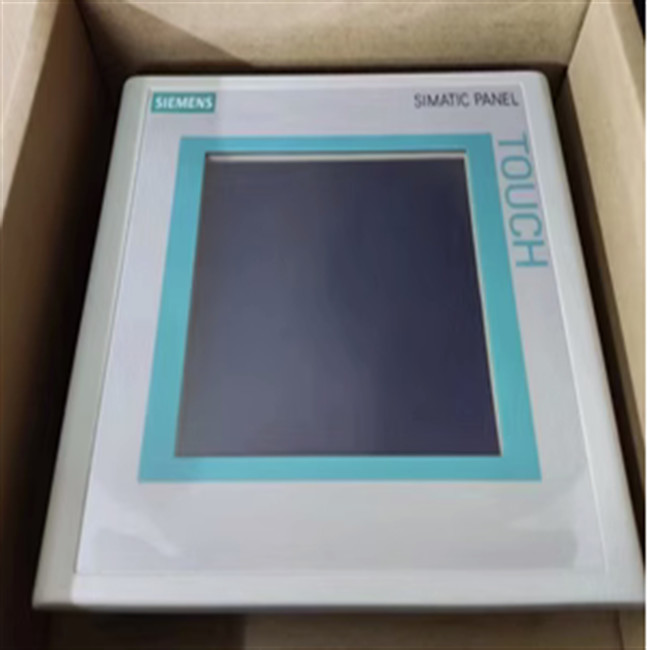

6AV6642-0BA01-1AX1 HMI Touch Panel Siemens Touch Screen SIMATIC TP177B 6 "PN/DP
SIMATIC TP 177B 6 "PN/DP STN 256 color display screen MPI protocol/PROFIBUS DP protocol RS485 interface/RS422 interface/USB interface Ethernet 10/100 interface printer MM card slot can be configured item by item using WinCC flexible 2005
| Display screen specifications | STN |
| Screen Diagonal | 5.7 in |
| Number of Colors | 256 |
| Horizontal image resolution | 320 pixel |
| Vertical image resolution | 240 pixel |
| Operate element | Touch Screen |
| Connection method of mouse/keyboard/barcode reader | USB/USB/USB |
| Installation position | vertical |
